Updating Report Standards – Aidi

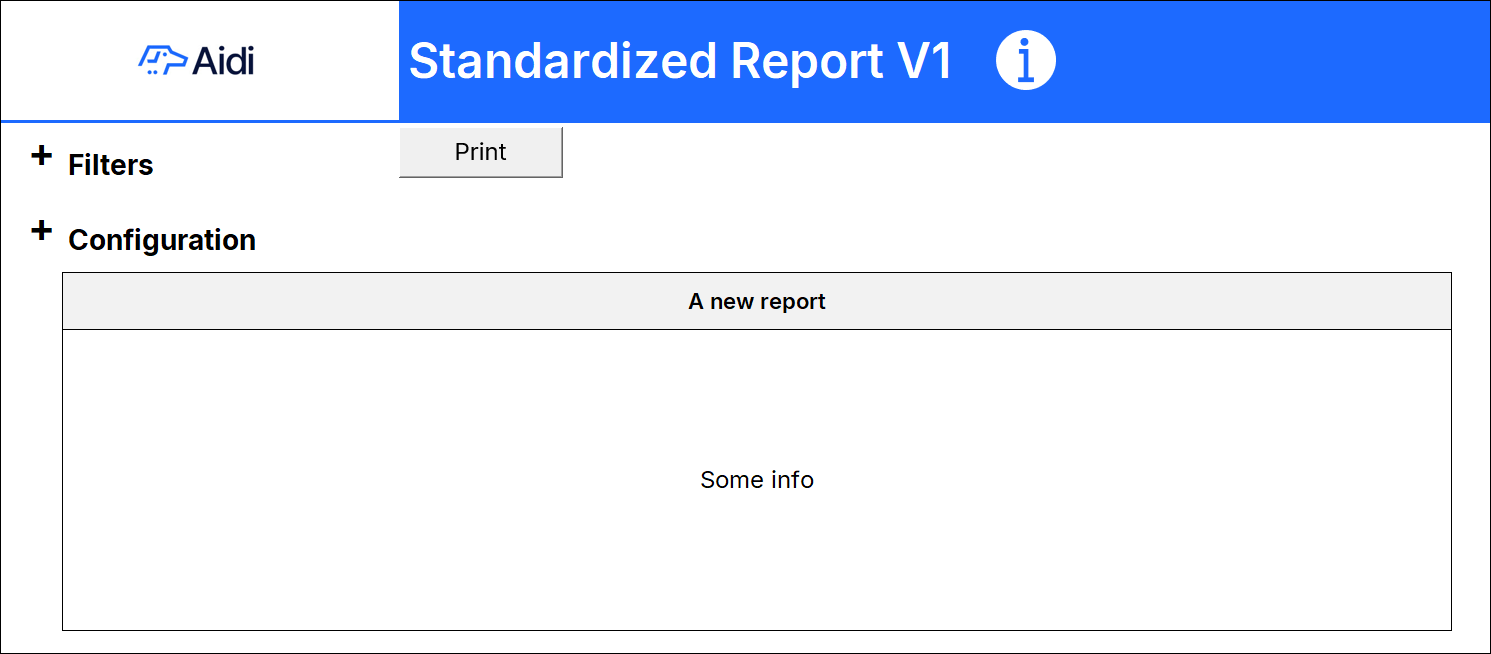

We are currently deploying a new standard that will be added to upcoming versions of our report list. This new standard aims to improve the layout and accessibility, while streamlining the presentation. Here are the main guidelines for this new standard.

✏️Note: This standard is not yet implemented for all our reports. It will be gradually deployed throughout upcoming reports versions.

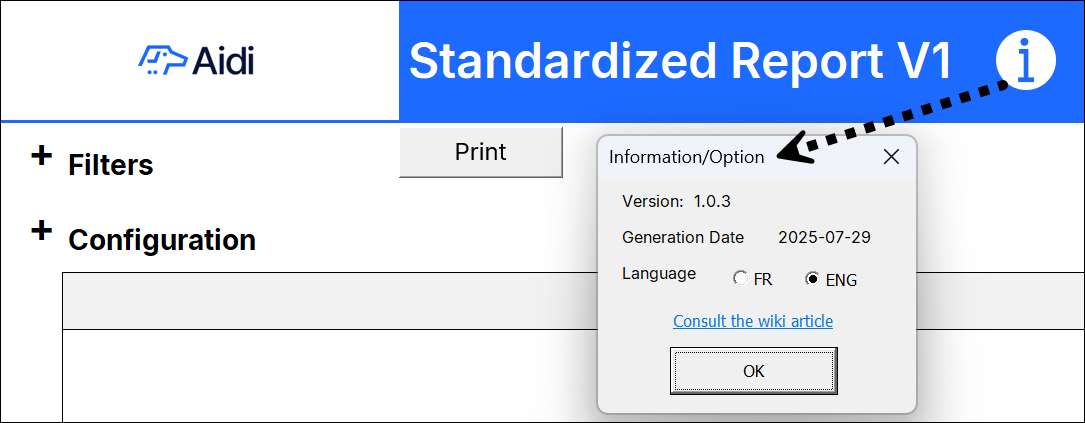

Tooltip

On the right of the title, you can find the following tooltip.

It contains the following informations/options

The versionning number of the report
The generation date of the Excel macros (and not the generation date from Aidi)
Language selection (French or English)
A link that leads to the wiki documentation of the report

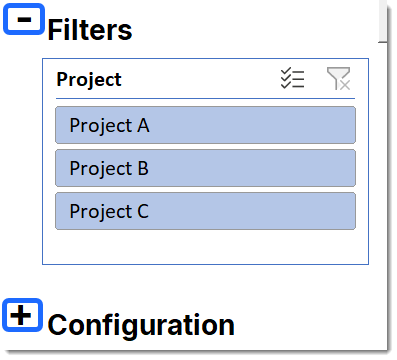

Filters and configuration

This section, which can be opened/closed by clicking on the + or -, allows to configure filters, parameters and, in certain cases, graphs for the concern sheet. If these sections are not required for a sheet, they will not be present.

Colors and fonts

The colors and fonts that will be used are as followed

Level	Background Color	Text Color	Font
Main header	Aidi blue (#1D6AFF)	White	Inter Semibold
Secondary header	Light grey (#F2F2F2)	Black	Inter Semibold ou Inter
Text	White (#FFFFFF)	Black	Inter
Other text option	Light blue(#E9EDF7)	Black	Inter Semibold ou Inter

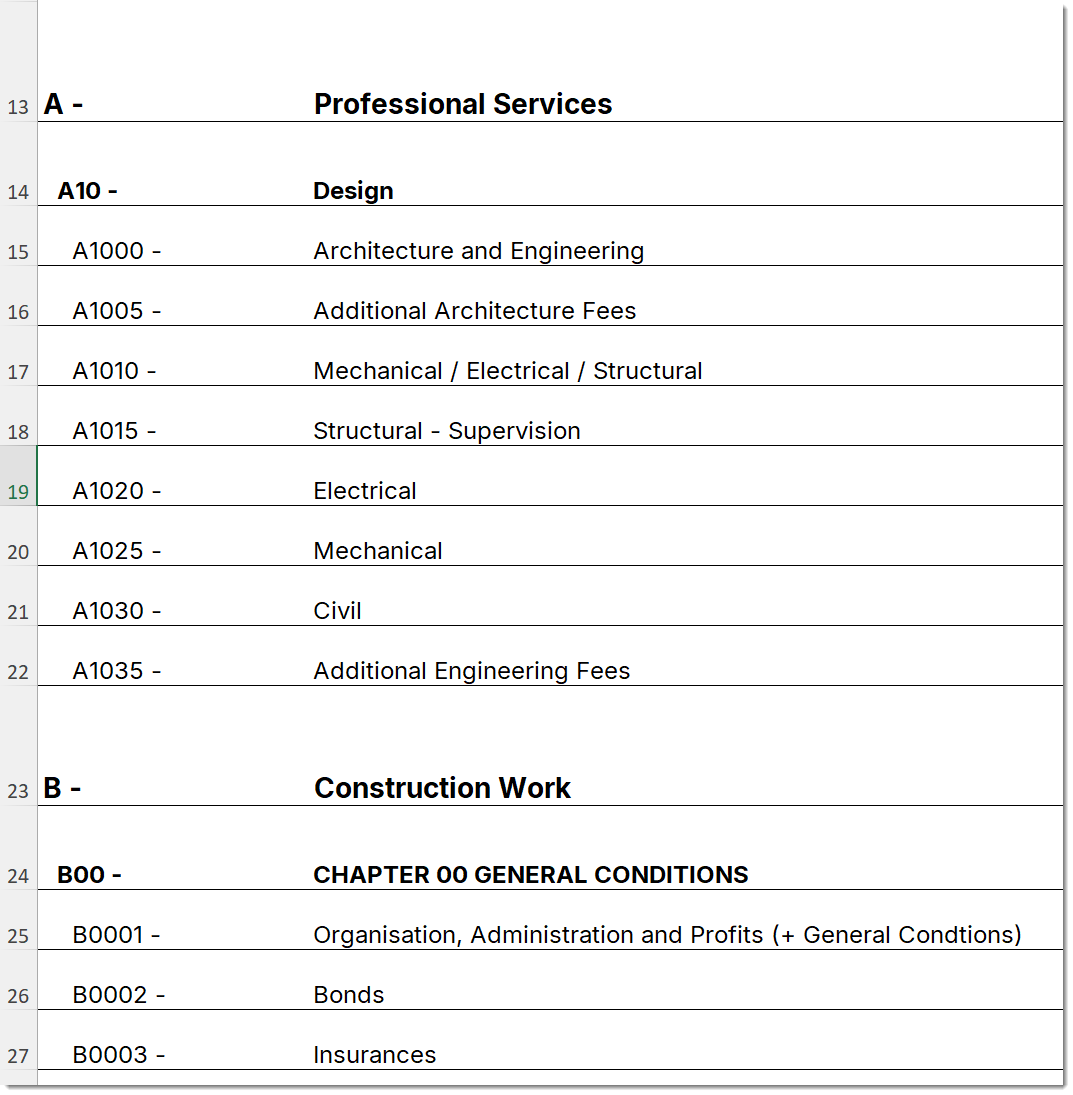

Display of contractual lines

The display of contractual lines follows 3 distinct formats:

Level	Space between the lines (Line height)	Font size	Bold
Level 1 lines	Very large (60)	14	Yes
Parent lines (having one or multiple child(s))	Large (42)	12	Yes
Child line	Normal(30)	12	No

Amounts formatting

The formatting of amounts will be updated according to your Aidi language and configuration. Here are the currently supported standards:

Zone	Excel formatting	Exemple
QC	#,##0.00 "$ ";(#,##0.00) "$ ";"-" "$ ";@	1 234 567,89 $
CAD and USD	_($* #,##0.00_);_($* (#,##0.00);_($* "-"??_);_(@_)	$ 1,234,567.89
EURO	#,##0.00 " €";(#,##0.00) " €";"-" " €";@	1 234 567,89 €

✏️Note: Thousands and decimal separators depend on your system's Excel configurations. The result may therefore vary.

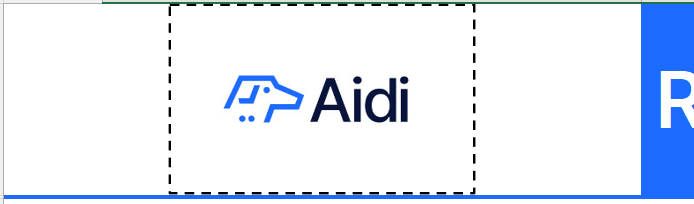

Logo

The section for the logo will always follow a 10:3 proportion. In cases where the logo does not adhere to this proportion, it will be resized and centered within this section while maintaining its original aspect ratio to avoid distortion. For example:

✏️Note: The logo’s size (in pixel) may vary depending on the dimension of the user’s screen.

Print button

All of our reports will have a pre-established layout optimized for PDF printing. Additionally, a print button will be added where relevant.

Translation Management

For enterprise clients benefiting from terminology specific to your organization, you will now be able to download the report from the wiki containing your terminology.
